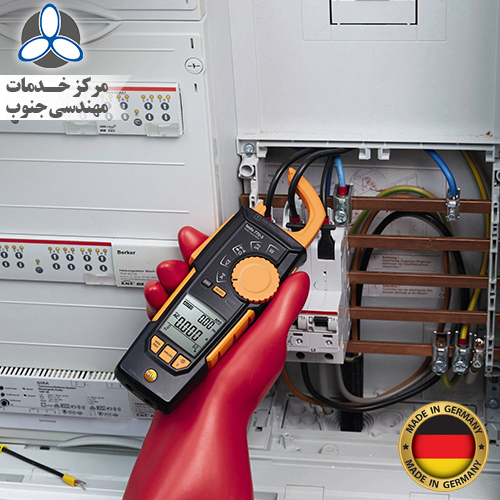

اتصال به كابل برق بدون لمس كردن با کلمپ متر تستو
بازوي گيره دستگاه كاملاً به سمت داخل دستگاه جمع مي شود و به راحتي مي توان كابل برق را در داخل گيره قرار داد. تشخيص اتوماتيك پارامتر مورد اندازه گيري كار را براي ما آسان نموده است.
اندازه گيري جريان، ولتاژ و توانايي تشخيص جريان مستقيم و متناوب را دارد.همچنين تشخيص پارامترهايي ديگر از جمله مقاومت، ظرفيت خازن و تست ديود را بصورت اتومات انتخاب مي كند.

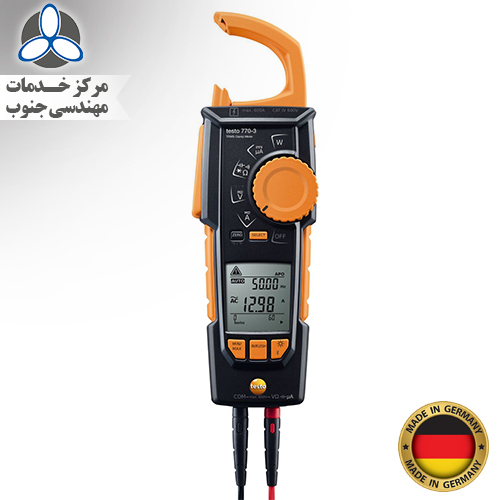

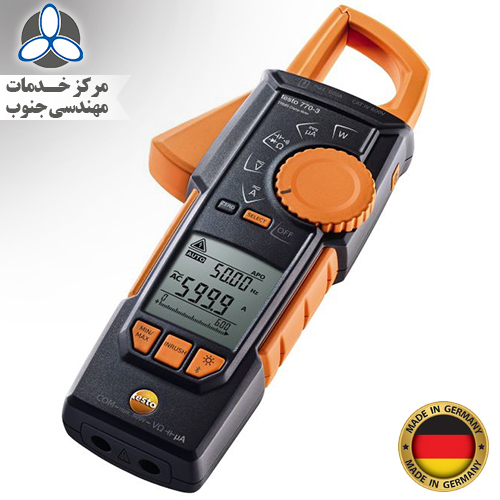

کلمپ متر تستو770 تولید کشور آلمان می باشد.
جهت كسب اطلاعات بيشتر با كارشناسان ما تماس بگيريد.
از لینک زیر دیتاشیت کلمپ متر تستو 3-770 را دانلود نمایید.
Temperature - TC Type K (NiCr-Ni)
Measuring range | -20 to +500 °C |
Accuracy | ±1 °C (0 to +100 °C) |
Resolution | 0.2 °C |
DC voltage
Measuring range | 1.0 to 600.0 V |
Resolution | max. 1 mV |
Accuracy | ± (0.8 % of mv + 3 Digit) |
AC voltage
Measuring range | 1.0 mV to 600.0 V |
Resolution | max. 1 mV |
Accuracy | ± (1 % of mv + 3 Digit) |
DC current
Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
Resolution | 0.1 (clamp) 0.1 (measuring cables) |
Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (2 % of mv + 5 Digit) (measuring cables) |
AC current
Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
Resolution | 0.1 A (clamp) 0.1 μA (measuring cables) |
Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) |
Resistance
Resolution | max. 0.01 Ohm |
Measuring range | 0.01 to 60.0 MOhm |
Accuracy | ± (1.5 % of mv + 3 Digit) |
Capacitance
Resolution | max. 0.01 nF |
Measuring range | 2 nF to 60.00 mF |
Accuracy | ± (1.5 % of mv + 5 Digit) |
Frequency
Resolution | max. 0.1 Hz |
Measuring range | 0.01 Hz to 9999 kHz |
Accuracy | ± (1 % of mv + 1 Digit) |
Active Power
Measuring range | 0.1 W to 600 kW |
Accuracy | ± (5 % of mv + 5 Digit) |
Resolution | 0.1 W |
Reactive Power
Measuring range | 0.1 to 600.0 kvar |
Accuracy | ± (10 % of mv + 5 Digit) |
Resolution | 0.1 var |
Apparent Power
Measuring range | 0.1 VA to 600.0 kVA |
Accuracy | ± 1 Digit |
Resolution | 0.1 VA |
Direct current DC Voltage
Measuring range | 0.1 W to 600.0 kW |
Accuracy | ± 1 Digit |
Resolution | max. 0.1 W |
Power Factor
Measuring range | -1.00 to +1.00 |
Accuracy | ± (10 % of mv + 5 Digit) |
Resolution | 0.01 |
General technical data
Operating humidity | 0 to 80.0 %RH |
Weight | 378 g |
Dimensions | 249 x 96 x 43 mm |
Operating temperature | -10 to +50 °C |
System requirements | requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0 |
Product colour | Black |
Connectable probes | 1 x temperature probe (adapter required for type K thermocouples) |
Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
Battery type | 3 AAA micro batteries |
Display type | LCD (Liquid Crystal Display) |
Display size | 2 lines |

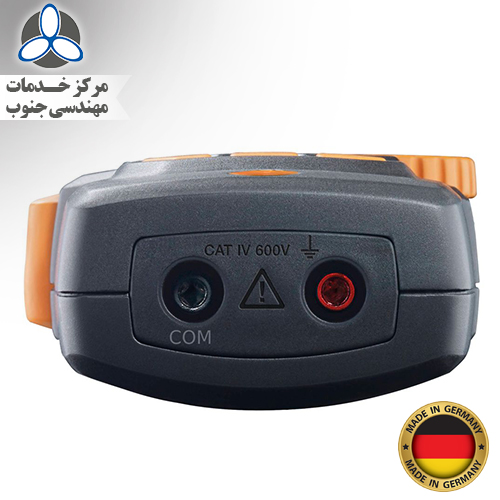

Interface | 2 measuring jacks |
Storage temperature | -15 to +60 °C |
Overvoltage Category | CAT IV 600V; CAT III 1000V |
Authorizations | CSA; CE |
Internal_resistance | 11 MOhm (AC / DC) |
Instrument Measurement Functions
Diode test | yes |
Continuity testing | yes |
Display ligthing | yes |
Hold | yes |
MinMax | yes |
Power Measurement | yes |
Temperature measurement with adapter | yes |
True RMS | yes |
Inrush current measurement | yes |
Bluetooth | yes |
Display (counts) | 6,000 |
μA current measuring range | yes |
Autom. measurement parameter detection | yes |
